The Best 2 Electric Water Valve

Technical Parameter:

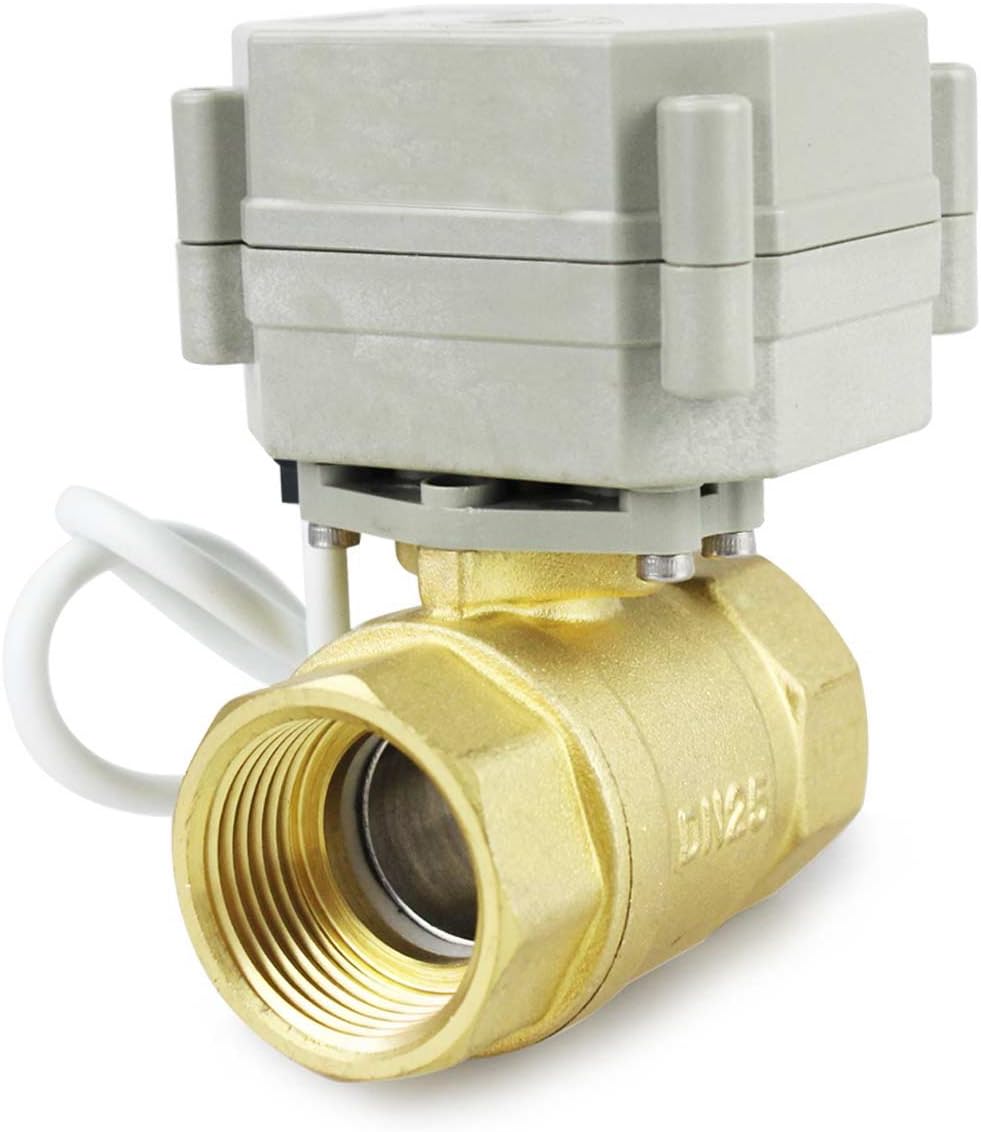

◎Model: T25-B2-B;
◎Working Voltage: 9-24VAC/DC;
◎Valve Dimension:1″ NPT Female Thread Connection, 23mm(0.075Ft) Reduce Bore;
◎Wiring Diagram:CR5-02(2 Wires Control, Installed With Position Feedback Wires);
◎Valve Body Material: Brass;
◎Actuator Material: Engineering Plastics;
◎Open/Closed Time: About 3-5Sec.;
◎Suitable Media: Air, Water, Oil;
◎Power: Max 2 Watts;
◎Manual Override: Yes;
◎Indicator: Yes;
◎Working Current: Max 500Ma When Action, Cut Off Current When Arrived At Place;
◎Max. Torque Force For Aucator: 2 N.M;
◎Cables Length: 0.5 Meters;
◎Max Working Pressure:145PSI(1.0MPA);
◎Liquid Temperature: 32°~212°F (0°~100°C);
◎Environment Temperature:5~122F(-15°~50°C);

Application:
◎HVAC;
◎Water Treatment;
◎Chemical Process;
◎Small Industrial Equipment For Automatic Control;
◎Replacing Solenoid Valve, Particularly When Solenoid Cannot Work Reliably;
◎Automatic Control Systems;
◎Efficient Water-Saving, Water Equipment;
◎Solar Hot Water Project;
◎Regular Watering The Flowers, Timing Humidifying, Timing of Drainage of Air Compressor.

Features:
◎Smart Shape, Perform Reliably, Large Output Torque, As Long As 50000-100000 Times , Convenience For All Kinds Of Requirements;
◎Float Ball design, No Leak, Large Flow, The Valve is Bi-directional Ball Valve , Regardless of Inlet And Outlet , Most Suitable for Heavy Dirt and Long Time No Action;
◎The Conditions That Solenoid Valve Can Not Be Worked;
◎High Protection Class, Can Be Worked In Most Conditions;
◎POM Cooperate With Metal Gear, The POM Gear is Used in High-Speed Level to Reduce Noise, At The Same Time Metal Gear is Applied At The Low-Grade To Ensure The Reliability of The Gear;
◎Electrical and Mechanical Limit Integrated Design, Accurate Localization ,High consistency , Put an End to Swing of Valve.

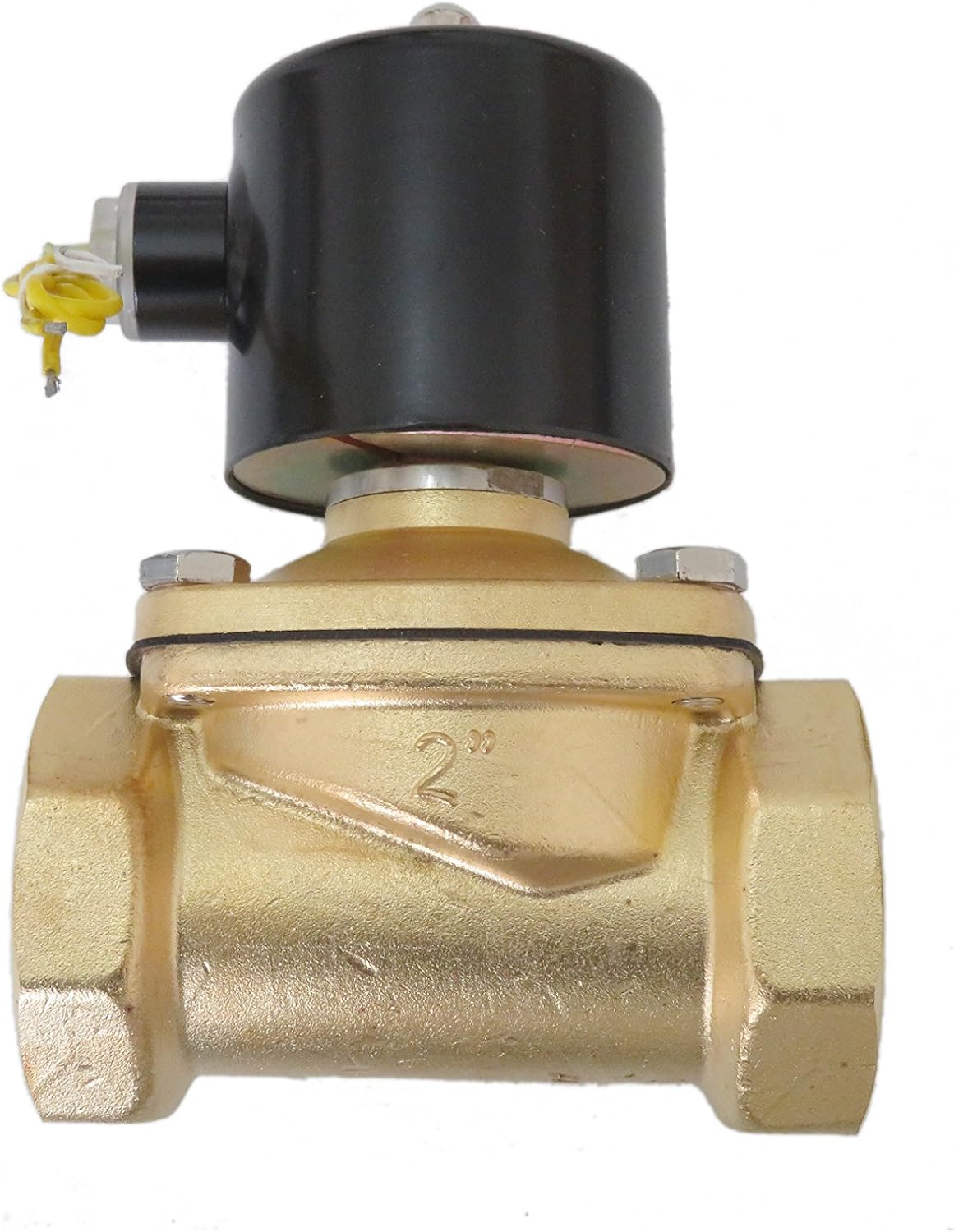

Specifications
Body Material Brass
Components Stainless Steel
Seal Material Viton Diaphragm
Operation Type Semi-Direct Lift Valve
Coil Connection 5.5″ Lead Wire
Orifice Size 50 mm
Cv Value 48
*Duty Cycle 100% but not indefinitely
Weight 7 lbs
Height 6.50″
Length 5.30″ port to port
Width 4.25″

Function Normally Closed
Connection 2” Inch FNPT
Temperature Range 20 – 265°F
Pressure Range 0 – 145 PSI
Power Requirements 40VA – 40 Watts
*Suitable Media
Water – Air – Gas – Etc
Connection – No Polarity, + and – can be interchanged.

The valve timing is uncertain, however it is fast acting. Less than one second.
Mounting position is preferably coil up but can be mounted in any position.
*Consult a chemical compatibility expert for correct seal and valve body material choice.
*Duty Cycle – Like most solenoid valves the coil will become hot to the touch when left on continuously. The temperature will stabilize without failure. Leaving the valve powered on for long periods of time will reduce the life of the coil. Whenever possible the valve should be installed in a well ventilated are to increase the life of the coil. The valve is not intended to be left energized as a fail-safe for power outages. In this case please contact us for other options.
A pre-filter is always recommended to keep the diaphragm free from debris and the valve functioning properly.

Product description

Genuine Original Equipment Manufacturer (OEM) parts! This water inlet valve assembly (part number WR57X10033) is for refrigerators. Water inlet valve assembly WR57X10033 supplies water to the ice maker and water dispenser in the refrigerator. Safely store any food that could deteriorate while the power is off and unplug the refrigerator before installing this part. Wear work gloves to protect your hands. For Hotpoint & Kenmore.

From the Manufacturer

Water Valve. This GE refrigerator water valve WR57X10033 is used on GE made refrigerators including GE, Hotpoint and some Sears Kenmore Replaces WR57X10015, WR57X10034, WR57X10049, WR57X10063, WR57X10075, WR57X102, WR57X110, WR57X90, WR57X93, WR57X95, WR57X96, WR57X0102, WR57X0110, IMV-469, IMV469, SWR57X90, SWR57X93, WR57X0090, WR57X0093, WR57X0095, WR57X0096, WR57X110.

Specifications:
Rated power: 5W, no need to divide the positive and negative poles
Working mode: quota system (that is, intermittent cycle work system, the longest continuous work for about 4 hours, can continue to work after stopping for ten minutes, there will be danger of burning coils for more than four hours)
Use fluid: (0-100 ° C) water
Flow characteristics of water: 0.02Mpa>1.5L/min; 0.10Mpa>7L/min; 0.30Mpa>12L/min; 0.80Mpa>20L/min
Insulation performance: The insulation resistance between the conductor and the non-conductor is greater than 100MΩ
Insulation class: Class E insulation
Service life: ≥500,000 times (laboratory data), ≥300,000 times (actual normal use)
Valve type: diaphragm (operated by Servo)
Usage: water and low viscosity fluids
Material: metal + plastic
External thread diameter: approx. 20mm
Screw hole pitch:25mm
Size: approx. 84 x 57mm (L x H)
Coil size: approx. 34 x 23mm (W x H)
Unit conversion: 1mm=0.039inch

Note:
Manual measurement, with small error. Please check size in detail before purchase.
Real colors may slightly differ from the pictures, as it depends on specific monitor settings and light brightness.

We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.

Package Includes: 2Pcs

Description : 1/8inch DC 12V 2 Way Normally Closed Pneumatic Aluminum Electric Solenoid Air Valve WIC Valve 2ACK series 2-way normally closed solenoid valve is to control On/Off of air and inert gas. This solenoid valve has one 1/8″ inch NPT inlet and one 1/8″ inch NPT outlet port. Valve stays close when the coil is de-energized- and it opens when energized. Has two holes in the bottom and can be mounted in any position. Comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constant energized. 2ACK Series valve is a Zero differential solenoid valve which can be operated at 0 PSI (Vacuum). WIC Valve is compatible with SMC valves.
Specification :
Valve Type : 2 Way Normally Closed (Valve opens with energized)
Service Media : Air- Gas- Liquid- Water
Operation Model : Direct Acting
Flow Model : Uni-Directional
Flow Rate : 0.23Cv (Fluid Flow)- 22 SCFM at 100 PSI (Air Flow)
Response Time : Less than 20 ms
Body Material : Anodized Aluminum
Seal Material : NBR (Buna N) Armature
Tube Material : Brass Plunger & Spring
Material : Stainless Steel Coil
Certification : CE Certification
Coil Power : 6.5W
Coil Class : F Class IP 65 (CE Certification)
Coil Duty : 100% ED (Continuous Duty)
Operating Pressure : Vacuum to 115 PSI
Operating Temperature : -5 to 80 °C
Port Size : 1/8″ Inch NPT Female Port
Coil Voltage : 12V DC Voltage
Tolerances : DC : +10% –5% ; AC : +10% -15%
Electrical Connection : Grommet Coil with 12″ Lead Wire 2ACK Series Electric Solenoid Valve
Package included : 1 x 1/8inch DC 12V Electric Solenoid Air Valve

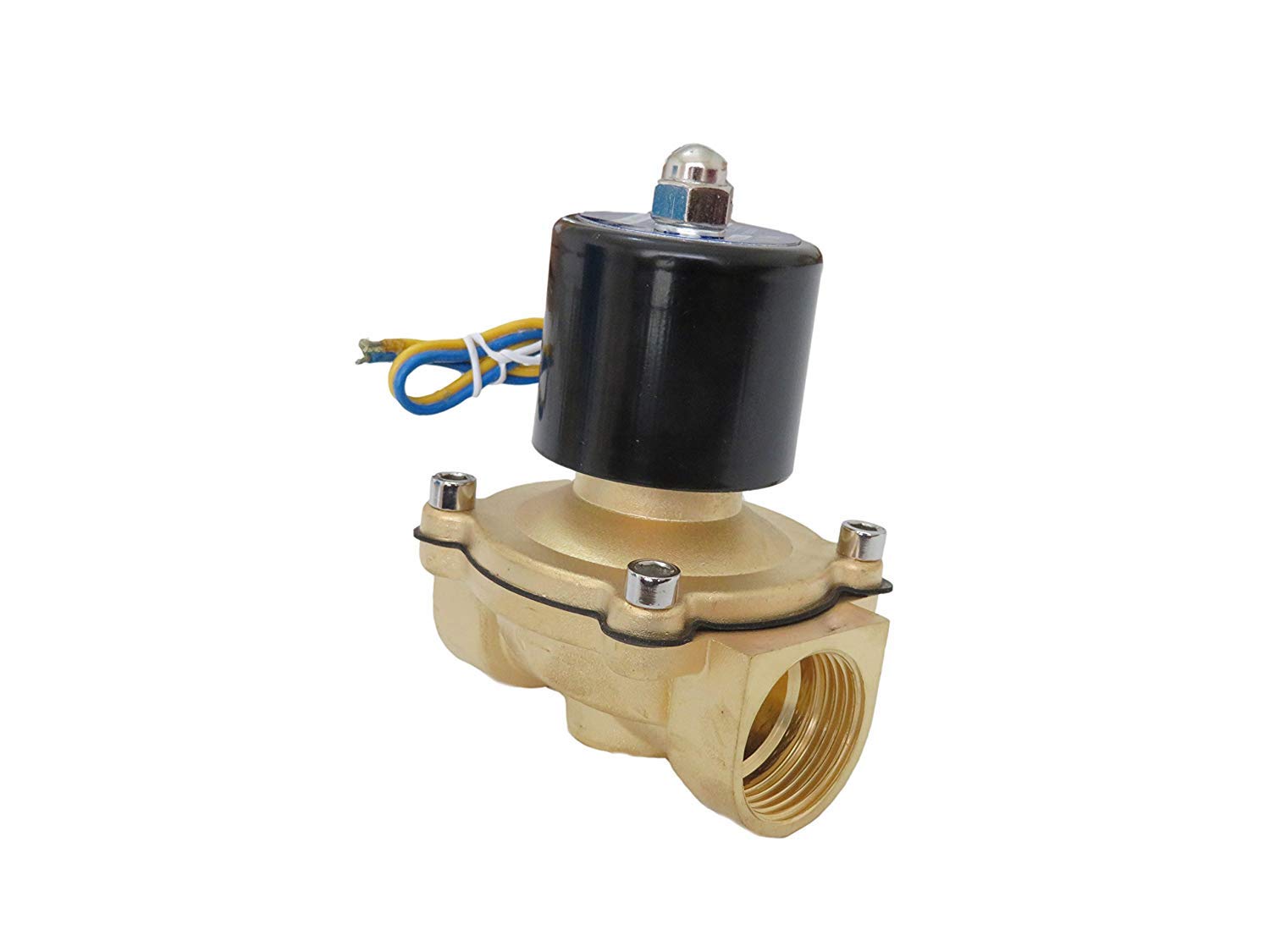

TECH SPECS –

Current: 0.2 Amp
Wattage: 24 Watt
Voltage: 110-120 VAC
Flow Rate: Cv = 12
Pipe Size: 1″ NPT female (14 TPI)
Orifice Diameter: 1″ (25 mm)
Diaphragm/Seal Material: Viton
Applications: Industrial grade highly reliable
Operation Type: 2-way 2-position direct lift diaphragm
Operation Mode: Normally closed (valve opens when coil is energized)
Flow Direction: Unidirectional (follow the arrow on valve body)
Operating Pressure Differential: 0-145 psi (0-1 MPa, gravity-feed capable)
Operating Temperature: 15-125 °F (-10~50 °C)
Media Temperature: 15-250 °F (-10~120 °C)
Body Material: Forged high-quality solid brass
Coil: Copper wire in resin-molded casing
